Layer 2 vs Layer 3: Comprehensive Review of Network Switches

Layer 2 vs Layer 3: Comprehensive Review of Network Switches

Switches are the core components of any network, but not all switches are created equal. The two most conventional types are Layer 2 switches and Layer 3 switches, each serving different purposes. The best choice depends on the size and complexity of your network and your specific objectives. Here's a detailed comparison of these switch types and guidance on selecting the right one for your system.

What is a Layer 2 Switch?

A Layer 2 switch operates at the data link layer of the OSI model, forwarding traffic based on MAC addresses. These switches are ideal for building local area networks (LANs) where devices need to interoperate within the same network segment. Key features include working at the MAC address level, enabling VLAN support to segregate traffic, being well-suited for small networks due to their simplicity and cost-effectiveness, and lacking the ability to route traffic between VLANs or subnets (which requires a router).

Examples of Layer 2 switches include the Cisco Catalyst WS-C2960X-48FPS-L, which offers 48 Fast Ethernet ports with PoE+ support and is commonly used for access-layer deployment in small businesses, and the Ruckus ICX7150-24P, which provides 24 Gigabit Ethernet ports with PoE+ and is ideal for small office or branch networks.

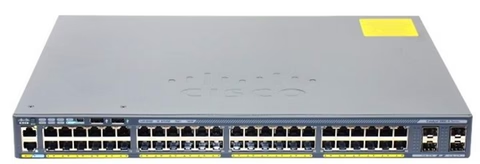

Cisco Catalyst WS-C2960X-48FPS-L

Ruckus ICX7150-24P

What is a Layer 3 Switch?

A Layer 3 switch operates at both the network and data link layers of the OSI model. It routes based on IP addresses and forwards packets based on MAC addresses, making it suitable for inter-VLAN routing and use in larger, more complex networks. Key features include support for routing protocols like OSPF, RIP, and BGP, the ability to forward traffic between VLANs or subnets, suitability for distribution and core layers in large networks, and generally higher cost compared to Layer 2 switches.

Examples of Layer 3 switches are the Cisco Catalyst WS-C3850-24XU-S, which has 24 Gigabit Ethernet ports with advanced routing features and is suitable for enterprise-class installations, the Ruckus ICX7450-48P, which offers 48 Gigabit Ethernet ports with PoE+ and modular uplinks for 10G or 40G, making it ideal for medium to large businesses, and the Juniper EX4300-48T, a 48-port Gigabit Ethernet switch with Layer 3 routing and Virtual Chassis technology, great for data center or campus deployments.

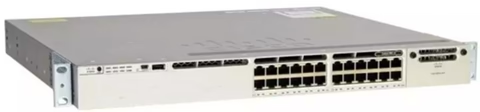

Cisco Catalyst WS-C3850-24XU-S

Ruckus ICX7450-48P

Juniper EX4300-48T

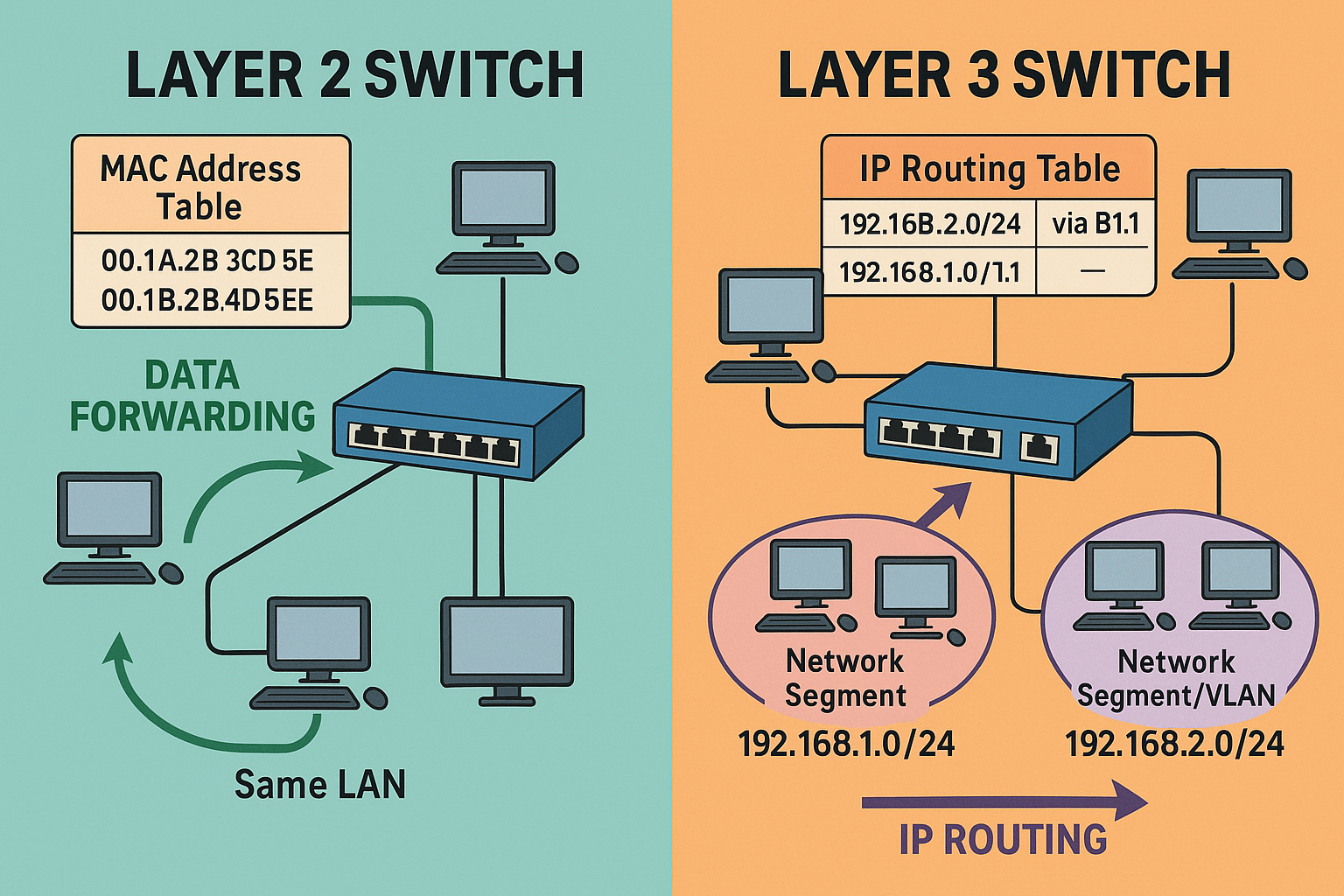

Layer 2 vs. Layer 3: The Main Differences

Layer 2 switches operate at the data link layer and use MAC addresses for forwarding, while Layer 3 switches operate at the network layer and use IP addresses. Layer 2 switches require an external router for inter-VLAN routing, whereas Layer 3 switches have built-in routing capabilities. Layer 2 switches are best for small LANs, while Layer 3 switches are suited for large networks or complex topologies. For example, the WS-C2960X-24TS-L is a Layer 2 switch, while the WS-C3850-24XU-S is a Layer 3 switch.

When to Use a Layer 3 Switch

A Layer 3 switch is recommended when your network needs routing between VLANs or subnets, better routing protocol support, and scalability for large or mid-size companies. Notable models include the Cisco Nexus N3K-C3064PQ-10GX, ideal for high-throughput data center deployments, and the Dell Networking N3048ET-ON, a 48-port enterprise-class Layer 3 switch.

Layer 2+ Switches: A Hybrid Solution

Some switches, like the Cisco Catalyst 2960X-24PS-L, are classified as Layer 2+ devices. These are primarily Layer 2 switches with some routing features, such as static routing, making them a cost-effective solution for businesses that need minimal routing but do not require the full feature set of a Layer 3 switch.

In conclusion, the decision between a Layer 2 or Layer 3 switch depends on the size and complexity of your network. A WS-C2960X-48FPD-L is suitable for a straightforward small network, while a Layer 3 switch like the ICX7450-48P or WS-C3850-24XS-S is better for larger networks requiring VLAN routing. Understanding your network's requirements will help you choose a reliable option that balances performance, scalability, and cost.
