A properly streamlined network is a well-oiled machine. The way you organize your network devices, known as the network topology, affects everything from speed and reliability to scalability and ease of troubleshooting. Whether for a small office or a large business, choosing the correct topology is key to establishing an effective network. Here, we explore the primary network topologies, their advantages, and practical examples with well-known Cisco products.

What is Network Topology?

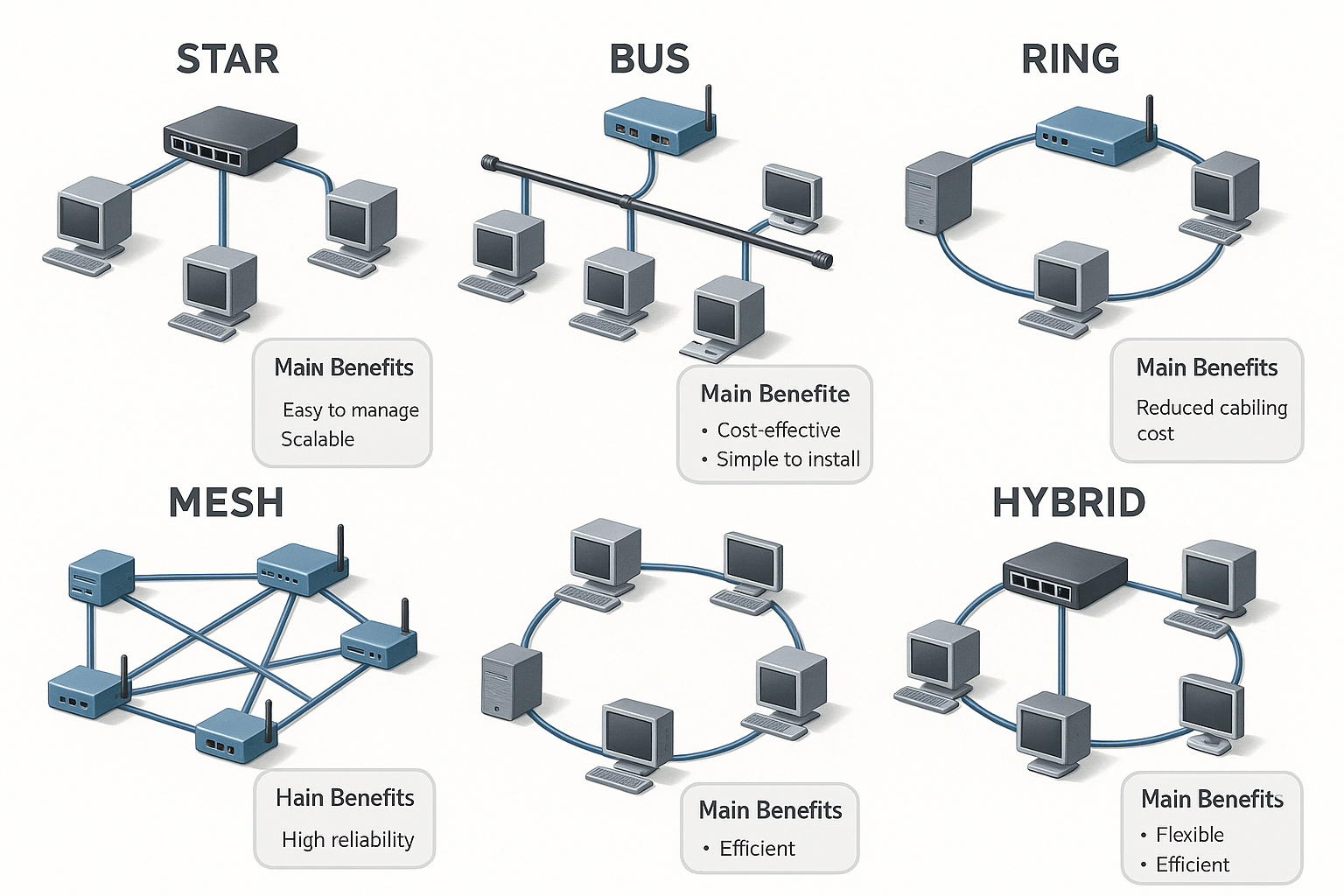

Network topology is the physical and logical arrangement of network devices—computers, switches, routers, servers, and more. Different topologies offer various advantages depending on the size and requirements of the organization. Below are five of the most common types, their pros and cons, and where each is most likely to be applied.

Bus Topology

Bus topology connects all devices to a single cable, the "bus," with all devices sharing the same bandwidth. This setup is cost-effective and simple to install, requiring minimal cabling, and is easy to extend by adding new devices. However, it has limited scalability, as performance drops with more devices, and a single point of failure can bring down the entire network. Small setups can benefit from bus topology using entry-level switches like the Cisco SF110D-08HP, an 8-port unmanaged switch ideal for small offices.


Figure 1: Cisco SF110D-08HP, an 8-port unmanaged switch

Star Topology

In star topology, all network devices connect directly to a central unit, such as a switch or hub. This allows for centralized management and easier troubleshooting, and a device failure does not affect the entire network. However, the central hub is a single point of failure, and extra cabling increases costs. The Cisco Catalyst 9200 Series (e.g., C9200L-48P-4G-E) is a popular switch for star topologies in medium to large networks, offering high-speed connections, PoE support, and robust security.


Figure 2: Cisco C9200L-48P-4G-E Catalyst 9200L 48-port PoE+

Ring Topology

Ring topology connects devices in a circular cabling system, with data passing through each device in one direction. This setup provides controlled data flow and reduces collisions, making it suitable for small networks needing deterministic data paths. However, troubleshooting is difficult, and a single failure can disrupt the entire network. Cisco's Nexus 3000 Series (e.g., N3K-C3064PQ-10GX) is often used in ring topologies for data centers and high-performance networks.


Figure 3: N3K-C3064PQ-10GX - Cisco Nexus 3000 Series

Mesh Topology

Mesh topology connects devices through multiple routes, providing high reliability and redundancy. If one connection fails, data can use another path. This topology is highly scalable, but it is expensive and complex due to the amount of cabling and configuration required. The Cisco Catalyst 9600 Series (e.g., C9600-48Y-E) is ideal for high-density, scalable networks using mesh topology, offering high security, throughput, and flexibility.


Figure 4: Cisco Catalyst C9500-48Y4C

Tree Topology

Tree topology combines star and bus topologies, connecting devices in a hierarchical manner. This allows for logical grouping and easier expansion, making it flexible for growing networks. However, it requires careful planning to avoid single points of failure and involves higher cabling costs. The Cisco Catalyst 3850 Series (e.g., WS-C3850-24P-L) is well-suited for tree topologies in corporate networks, providing 24 ports and Layer 3 routing for seamless communication across segments.


Figure 5: WS-C3850-24P-L Catalyst 3850 Switch

Choosing the Right Topology for Your Network

Selecting the right topology depends on factors like network size, budget, reliability needs, and future growth plans. Small businesses can keep installations simple and inexpensive with bus or star topologies using products like the Cisco SF110D-08HP.


Figure 6: Cisco SF110D-08HP 8-Port 10/100 PoE Desktop Switch

Growing businesses can benefit from the reliability and scalability of star topologies with solutions like the Cisco Catalyst 9200 Series.


Figure 7: Cisco Catalyst 9200 Series switches

Enterprise-level networks needing high scalability and reliability should consider mesh or tree topologies with high-end switches like the Cisco Catalyst 9600 Series.


Figure 8: Cisco Catalyst 9600 Series Switch

Conclusion: The First Step to Building a Good Network

Network topologies are fundamental building blocks, and choosing the right one is key to network efficiency, speed, and reliability. Whether constructing a small home office or a large company network, the right topology will guide your network to success. With the proper tools and guidance, creating an orderly network is within your reach. Ready to start building? Explore Cisco's offerings and find the perfect tools to blueprint your network for success!
